Dual-frequency RTK receiver GM PRO U

SKU: GMPRMU
Out of stock
In stock

Dual-frequency RTK receiver GM PRO U

SKU: GMPRMU
Out of stock
In stock
( 11 )
Variant:
0,00
52 650,00
+
Payment methods
  • Cash upon receipt
  • Bank transfer
  • Privat 24
Shipping methods
  • Pickup from NovaPoshta Service
  • NovaPoshta Service Courier
  • Pickup from the store
  • Other transport services
Description

The "GM PRO U" GNSS RTK receiver is a dual-frequency (L1, L2) 184-channel RTK receiver that works simultaneously with several satellite systems and receives corrections in RTCM 3.X.X format. This receiver is compatible with any software. A new series of GM PRO mini receivers in a compact case.

GM PRO mini Series

The new GM PRO series of second-generation receivers have improved internal architecture, optimized energy saving, high-quality system components, sealed, impact-resistant design and unique appearance. New receivers can work up to 15 hours on a single charge from built-in batteries. All GM PRO mini receivers are covered by a 12-month warranty.

The receiver has 184 channels for communication with satellites and works with most satellite systems and frequencies:

  • GPS: L1 C/A, L2C
  • GLONASS: L1OF, L2OF
  • Galileo: E1B, E1C, E5B
  • BeiDou: B1I, B2I
  • QZSS: L1 C/A, L2C
  • SBAS: WAAS, EGNOS, GAGAN, QZSS SBAS

The "GM PRO U" receiver has a very precisely calibrated geodesic antenna, which provides high and stable accuracy both horizontally and vertically. The receiver has a standard 5/8" thread, compatible with any geodetic poles, tripods and other accessories. The receiver is powered by 5V and can be recharged from any power bank.

The GNSS receiver "GM PRO U" can work with centimeter accuracy from any correction network via the Internet (RTCM 2.X, 3.3 protocols) and from its own base station. The distance to the base station can be more than 50 km. The receiver has built-in Bluetooth for connecting to any compatible applications.

Kit of equipment:
  • GNSS receiver "GM PRO U"
  • Charging cable
  • Cardboard packaging
  • Carrying case (optional)
The multi-frequency GNSS receiver "GM PRO U" is ideal for any operation:
  • absolute-precision positioning
  • staking out
  • cadastral works
  • high-precision mapping

GNSS receiver "GM PRO U" is an excellent price/quality solution that has a high-performance antenna for receiving 5 satellite systems. Fast "Fixed solution" with short initialization time, the highest degree of reliability and stability make the GNSS "GM PRO U" receiver a universal portable device for many applications where RTK accuracy is required. Receiver has compact size and low weight.



Video
Product videos:
Specifications
  • Dimensions (mm):
    158х75
  • Weight (kg):
    0.59 kg
  • Manufacturer country:
    Ukraine
  • GNSS receiver type:
    GM PRO mini
  • Brand:
    geometer
  • Number of channels:
    184
  • Positioning horizontal accuracy:
    10 mm + 1 ppm CEP
  • Positioning vertical accuracy:
    20 mm + 1 ppm CEP
  • Sattelite systems:
    GPS, Galileo, Glonass, Beidou
  • Frequency:
    1-20 Hz
  • Range of working temperatures:
    -20°C to + 85°C
  • Bluetooth:
    4.2
  • Cold start:
    24 sec
  • Warm start:
    2 sec
  • Hot start:
    1 sec
  • Ingress Protection:
    IP67
  • Battery life:
    up to 15 hours
Reviews
No reviews yet
Write a review
Name*
Email
Enter your comment*
Recommend
( 83 )
0,00
10 125,00

Agricultural mobile application geometer SCOUT for Android smartphone or tablet. A low-cost solution that will allow you to carry out area measurement of any shape, measure distances, create electronic maps, staking-out, land surveying, cutting out unproductive areas (holes) and many other operations.

( 8 )
2 835,00
2 430,00

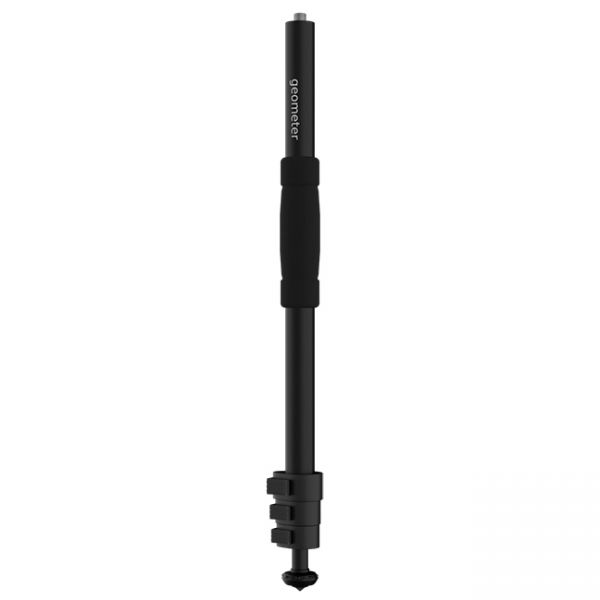

A telescopic aluminum survey pole TS180 is designed for comfortable surveying. The four-section construction delivers reliable stability with the help of solid flip locks.
