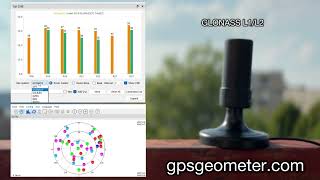

Multi-frequency (L1, L2, L5) helix antenna H2 is a high performance GNSS antenna designed for high-precision positioning services, with a stable phase center that maintains high gain at lower elevation positions, providing excellent satellite signal tracking. The antenna is small in size, light in weight and low in power consumption, which can effectively reduce the load of the device and improve the battery life of the device.

The H2 multi-frequency helix antenna is widely used in unmanned driving, portable navigation devices and compact RTK equipment.

ADVANTAGES OF MULTI-FREQUENCY HELIX ANTENNA H2

• Supports GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, GALILEO E1/E2/E5a/E5b signal reception
• High gain, wide beam and good reception effect for low elevation signal
• Stable phase center that provides high-accuracy positioning down to the millimeter level
• Extremely low noise figure
• Extremely lightweight, less than or equal to 30 g
• Extremely compact design, has a diameter 27.5 mm

SPECIFICATION

• Frequency range: GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, GALILEO E1/E2/E5a/E5b
• VSWR: ≤1.8
• Maximum gain: 3 dBi
• Antenna Axial Ratio: ≤3.0 dB
• Polarization: RHCP
• Port Impedance: 50Ω
• LNA gain: 33±2 dB
• Noise figure: ≤1.8
• Operating voltage: 3-12 V DC
• Operating current: ≤45 mA
• Connector: SMA-J
• Antenna size: Φ27.5×58 mm
• Antenna weight: 30 g
• Operating temperature: -40-+70 ℃
• Storage temperature: -55-+85 ℃
