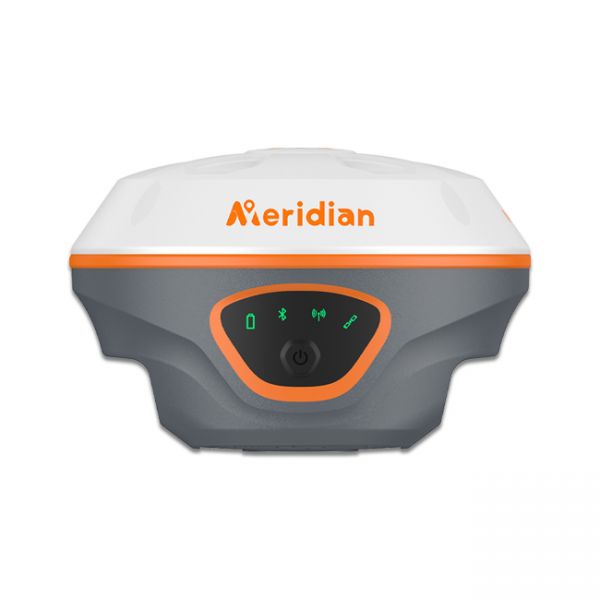

Meridian M20L KIT - Professional Multi-Frequency GNSS RTK Kit with Laser for Modern Surveying

Meridian M20L KIT is a complete professional GNSS RTK equipment kit designed for surveying, cadastral work, construction, topographic surveying, and engineering measurements. The kit combines the advanced Meridian M20L laser GNSS RTK receiver, professional M-Survey software for Android, the rugged professional Y55 controller, and a carbon fiber survey pole for maximum comfort and efficiency in field operations.

By combining GNSS RTK technologies, a laser rangefinder, IMU tilt compensation, and modern field equipment, the kit enables highly accurate measurements even in difficult or hard-to-reach locations without the need for traditional surveying methods. Meridian M20L KIT is designed for professionals looking for a modern, compact, and fully ready-to-use solution for professional surveying.

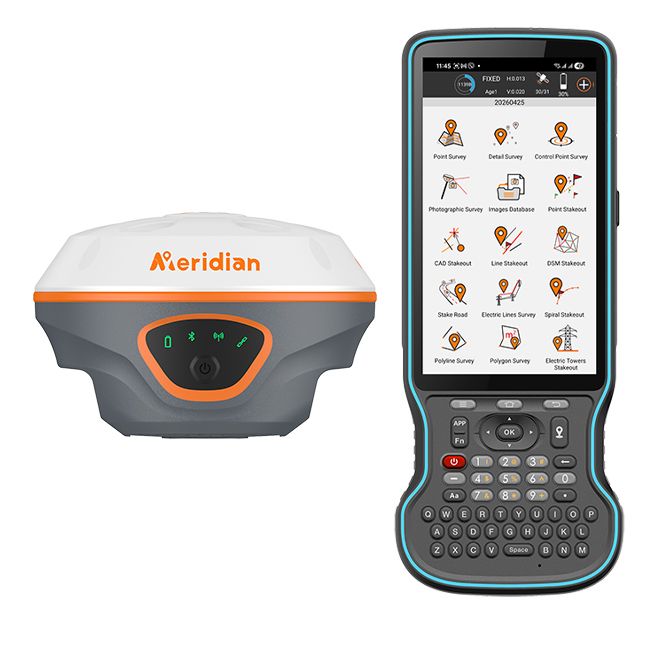

Package Includes:

• Meridian M20L GNSS RTK Receiver
• Permanent M-Survey License for Android
• Rugged Y55 controller
• Pole Mount Holder
• 2.2 m Carbon Fiber Survey Pole
• USB-C Cable
• Power Adapter
• UHF Antenna
• Warranty Card
• Carrying Bag
• Carrying Case (Optional)

Laser Measurements Without a Pole and Operation in Challenging Conditions

Meridian M20L is equipped with a modern green laser with a working range of up to 100 meters, allowing precise measurements on hard-to-reach or hazardous objects without the need for physical access to the point.

This opens new possibilities for:

• surveying bridges, supports, and piles,
• work near water bodies,
• measurements at height,
• operation in restricted-access areas,
• industrial and municipal facilities,
• energy infrastructure facilities,
• combined indoor and outdoor measurements.

The green laser remains clearly visible even in bright daylight, making fieldwork more comfortable and efficient.

High-Precision GNSS RTK with IMU Tilt Compensation

Meridian M20L supports all modern satellite systems and signals:

• GPS
• GLONASS
• Galileo
• BeiDou
• QZSS
• SBAS
• NavIC
• PPP (Galileo HAS and BeiDou)

The receiver is equipped with 1408 GNSS channels, ensuring stable signal reception even in challenging urban environments, under trees, or near obstacles.

RTK positioning accuracy:

• Horizontal: ±(8mm + 1ppm)
• Vertical: ±(15mm + 1ppm)

The 200 Hz IMU module provides fast and accurate tilt compensation without calibration. Tilt compensation accuracy reaches up to 2 cm even when the survey pole is tilted up to 60°.

4G, Wi-Fi, Bluetooth, and Integrated Radio

Meridian M20L supports modern wireless communication technologies for maximum compatibility with field equipment and RTK correction networks.

Communication modules:

• 4G LTE modem
• Bluetooth SPP + BLE 5.0
• Wi-Fi 802.11 a/b/g/n/ac
• Integrated UHF Radio 410–470 MHz

Supported formats and protocols:

• RTCM 2.X / 3.X
• CMR / CMR+
• NMEA-0183
• RINEX

With data update rates up to 20 Hz and signal reacquisition in less than 1 second, the receiver delivers stable performance even in dynamic conditions.

Compact Design, Powerful Battery, and IP67 Protection

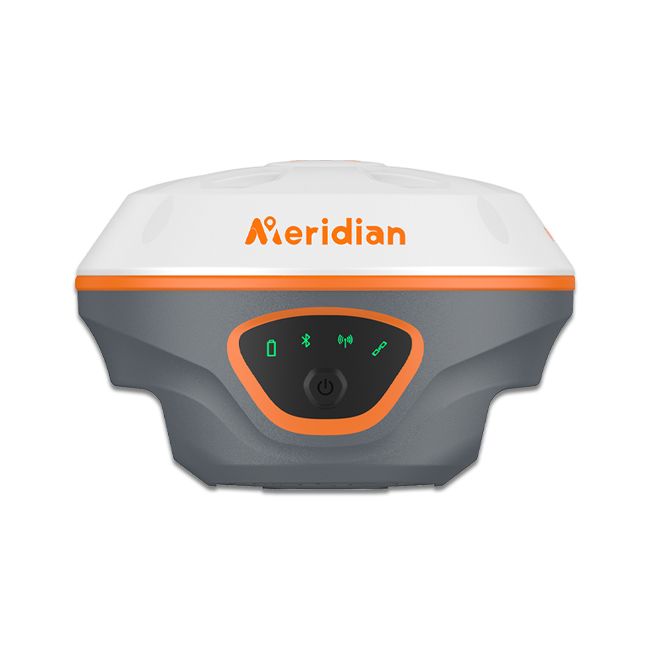

Meridian M20L features a compact palm-sized housing and weighs only 699 grams, making it convenient for everyday field use.

Key advantages:

• 7000 mAh battery,
• up to 20 hours of operation in laser RTK rover mode,
• up to 40 hours in static mode,
• USB PD fast charging support,
• IP67 dust and water protection,
• operating temperature from -40°C to +85°C,
• drop resistance up to 2 meters onto concrete.

Meridian M20L KIT - Professional GNSS RTK Kit for Modern Surveying

Meridian M20L combines compact design, high precision, laser technologies, and modern communication features in one professional device. It is an ideal solution for specialists looking for a modern GNSS RTK receiver for максимально efficient and safe fieldwork.
