3D leveling system for excavators with high-precision real-time satellite positioning (RTK) and sensor modules on each boom arm.

The principle of operation is based on reading information from all slope sensors located on the excavator boom, based on pre-calibrated parameters of the main axis of the machine. The operator instantly receives three-dimensional information about the position of the bucket in real time on the terminal. The GNSS receiver gives the exact coordinates of the machine in global space. Due to 2 GNSS antennas as part of the system, the operator simultaneously receives coordinates on the plane and data on the depth of the treated area.

• The system displays the depth of the design mark and the working slope;
• It is used for work on backhoe excavators, including those with an articulated boom and a leveling bucket;
• Provides work under conditions in which the bucket is not visible (in water and deep trenches);
• Possibility of using the excavator as a measuring tool;
• Bucket positioning accuracy up to 3 cm in height and 0.1% in slope;
• Several operating modes: depth, depth and slope, profile, measurement mode, excavator leveling mode.

Applications:

• Construction
• Transport infrastructure
• Careers
• Garbage dumps
• Construction of dams and reservoirs

Key features:

Accuracy ± 3 cm

3D visual control

HMI platform

Warning E-Fence

Resume work from a stop point

Remote control and unmanned mode

Adaptive learning algorithm

Online support and OTA

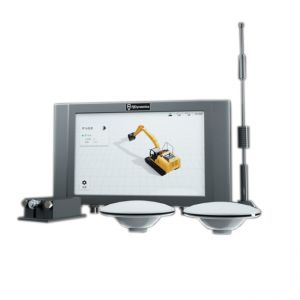

Equipment:

1. Screen 10,1" with internal GSM modem and software
2. Tilt sensor modules
3. 2, 3, 4G antenna
4. RTK/GNSS antennas
5. Remote control
6. Data and image transmission module (optional)
7. Data and image module antennas (optional)

Static accuracy:

Auxiliary operation accuracy:

Support for any type of machinery:

• Excavators
• Bulldozers
• Graders
• Cranes
